Brass Swing Check Valve – MIHA

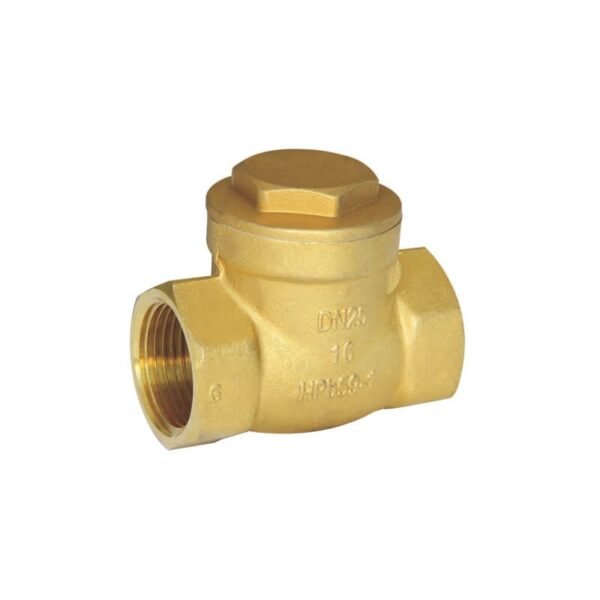

Brass Swing Check Valve
Send the enquiry and we reply with pricing, sizing and current stock. No account, no checkout.
Description
A brass swing check valve is a non-return valve that uses a hinged disc to allow fluid flow in one direction only, automatically closing to block reverse flow and protect pipelines from backflow and water hammer. SWBM Dubai supplies the MIHA Brass Swing Check Valve, a PN16-rated, BSPT threaded valve manufactured from high-grade brass for excellent corrosion resistance and long-term reliability across residential, commercial, and industrial applications in Dubai, Sharjah, Abu Dhabi, and the wider UAE.
Key features:
- Swing disc mechanism allows one-way flow and closes automatically to stop backflow
- Solid brass body for corrosion resistance and long service life
- BSPT threaded connection with standard dimensions for quick, leak-free installation
- PN16 pressure rating for consistent performance under load
- Ideal for water supply systems, irrigation networks, plumbing installations, HVAC lines, industrial processes, and agricultural applications
| Size(inch) | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ |
|---|---|---|---|---|---|---|---|---|---|
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| L(mm) | 47 | 51.5 | 63 | 70 | 82 | 97 | 120 | 133 | 160 |
| H(mm) | 48 | 54 | 61.5 | 73 | 80 | 95 | 115 | 131 | 158.5 |
